EXPERIENCE A NEW LEVEL OF QUALITY ABOARD THE MAG BAY 33’
Finally, a truly refined center console. Serious angling meets unprecedented style. From the same hands that brought you CABO Yachts, we introduce the Mag Bay Yachts 33’ center console. Built to fish with the family in mind, we deliver true quality, performance and styling. The Mag Bay 33’ is standard with twin Mercury 300’s and can be outfitted with twin Mercury 400’s or 450’s. Standard live well capacity is 75 gallons and there is an option for an additional 35 gallon live well in the deck. The Mag Bay 33 can also be oriented for cruising with options such as forward seating and aft bench seating. Mag Bay is happy to offer semi-custom options for those really looking to personalize their boat to their liking. Mag Bay is proud to work with only the finest dealers in the Americas.
FUEL (3 TANKS) 338 GAL
WATER 38 GAL
WASTE 13 GAL
FISH BOX 1464 QUARTS
BAIT TANKS 75 GAL TRANSOM
L.O.A. 33’ 6”
B.O.A. 10’
DRAFT 2.0’
DEADRISE AT TRANSOM 22 DEGREES
DISPLACEMENT 10,200 DRY
STYLE TO TURN HEADS - DURABILITY TO LAST
Top quality components come standard on a Mag Bay, as well as many of the features that others call options. The totally unique lines of the Mag Bay are the perfect marriage between a classic look and a modern backbone. She looks as sleek at the dock as she does slicing the seas offshore.
CUSTOMIZE YOUR 33 TO SUIT YOUR NEEDS
Mag Bay Yachts uses premium quality gelcoat available in any color preference and a variety of hull colors. Choose your deck & seating configuration to match your style. Tailor your Mag Bay to your needs as a fishing machine, dayboat, or tender with flexible seating arrangements. A starboard side, inward swinging dive door comes standard. Additional "U" style seating in the bow, removable aft seating or full aft bench seating in lieu of the live well are optional. Custom interiors are standard and choose from a vast selection of fabric colors, textures and even stitching colors.
STANDARD FEATURES
INTEGRATED MOTOR FLUSH INLET
ON TRANSOM PLATE
TACKLE CENTERS
WITH 6 TRAY CAPACITY
STARBOARD SIDE DIVE DOOR
WITH STAINLESS LADDER
ELECTRIC HEAD
WITH FRESHWATER FLUSH
50-PSI FRESH WATER SYSTEM
WATER PUMP SYSTEM

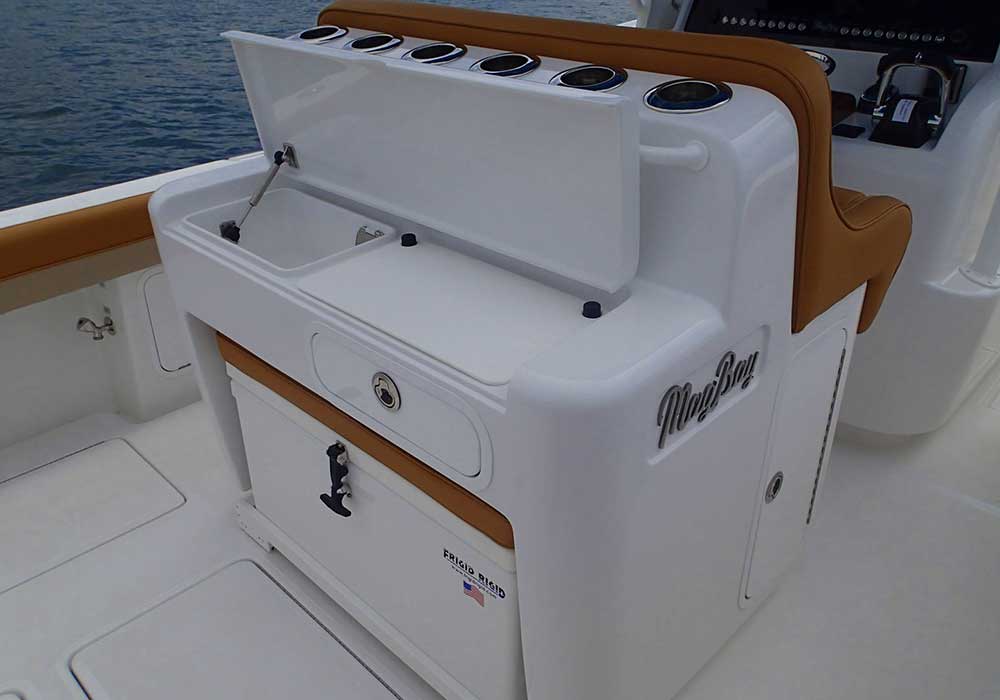

AFT CONSOLE BAIT PREP SINK
WITH ADJOINING CUTTING BOARD
70-PSI SALTWATER WASHDOWN
SALTWATER WASH DOWN SYSTEM
8 CUPHOLDERS
BETWEEN CONSOLES
PRESSURIZED TRANSOM BAIT TANK
WITH CLEAR LID
CONSOLE CUBBY
WITH 5 USB PORTS
DOUBLE FUEL MANIFOLD
MANIFOLD SYSTEM
PREMIUM UPHOLSTERY
CHAIRS AND CONSOLE
Lopolight 3NM LED Navigation Lights
Color Changing LED Hardtop Lights
Aft Spreader Lights
Console Cubby With 5 USB Ports
6 Gem Bluewater Rod Holders
Zipwake Interceptor Trim Tabs
8 JL Audio Speakers with Subwoofer
Ongaro Steering Wheel
Oversized Stainless Steel Hardware Throughout
Extensive Storage Throughout
8 Cup Holders Between Consoles
Built With Pride In California, USA
Shower Sump Box
50-PSI Fresh Water System
70-PSI Saltwater Wash down System
Macerator Pumps For Fish boxes
Flush Pocket for Incorporation of 1KW Transducer
6 Pop Up Cleats Forward
2 Aft Cleats With Custom Hawse Pipes
Fiberglass Sea Chest
High and Low Speed Intakes For Sea Chest
Pressurized Transom Bait Tank With Clear Lid
Seastar Optimus EPS Power Steering
Double Fuel Manifold System
4 Lifeline Group 31 Batteries With Charger
Electric Head With Freshwater Flush
Patented Michael Peters Twin Step Hull Design
Aluminum T Top With Fiberglass Hardtop
100% Vinylester Resin Construction
Cored Hull Sides, Solid Fiberglass Bottom
High Density Polyurethane Cored Transom
Proprietary Molded Stringer Grid System
Unique “Unibody” Transom
Starboard Side Dive Door with Stainless Ladder View
1/4″ Wall Aluminum Coal Tar Coated Fuel Tanks
True 3” Toe Kick On Both Consoles
Stainless Steel Rub Rail With Hand Formed Ends
2x 2000GPH Bilge Pumps
900GPH Bilge Pump Forward
Integrated Motor Flush Inlet On Transom Plate
Tackle Centers With 6 Tray Capacity
AVAILABLE OPTIONS
GENERAL OPTIONS
BOW SEATING MODULE
WITH REMOVABLE BACK RESTS - X2 STORAGE LOCKERS
AFT BENCH SEATING
IN LIEU OF AFT BAIT TANK
PAINT UNDER HARD TOP
GELCOAT COLOR ON UNDERSIDE OF FIBERGLASS TOP
LOFRANS PROJECT 1000 -ANCHOR WINDLASS
STAINLESS SWIVEL AND STAINLESS ANCHOR, 200 FEET OF ANCHOR RODE AND 50 FEET OF 5/16 CHAIN
HULL COLOR
GELCOAT WITH OPTION FOR SECOND COLOR UNDER CHINE

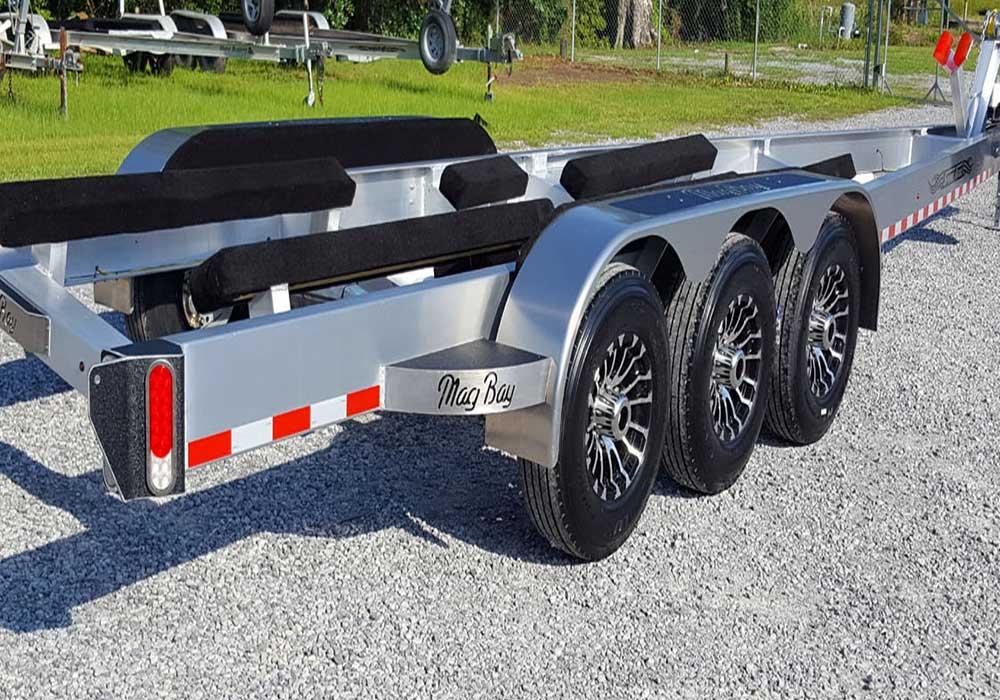

TRIPLE AXLE OVERSIZED TRAILER
FROM SPORT TRAIL LLC.
XL HARD TOP - OVERSIZED TOP FRAME
EXTENDED TOP WITH 35% MORE COVERAGE
STAINLESS STEEL T-TOP FRAME
316 STAINLESS STEEL LEGS WITH MIRROR POLISHED WELDS
CONSOLE WIND SCREEN
CUSTOM 1 PIECE MACROLON STRATA GLASS ENCLOSURE
AFT JUMP SEATING
REMOVABLE SEATING ON FIBERGLASS BASE

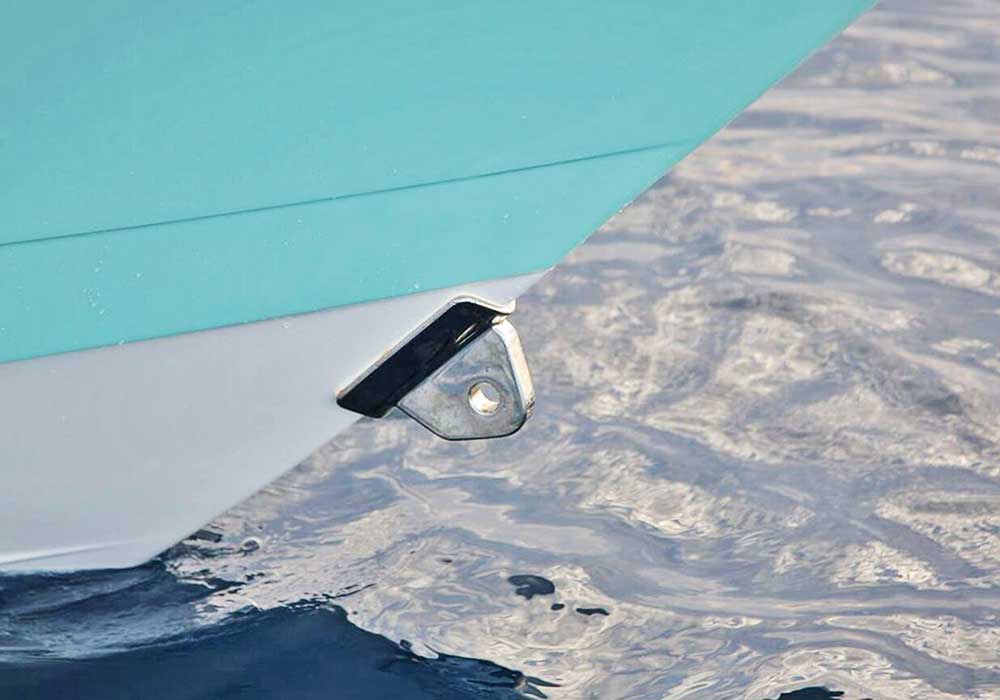

BOW TOWING EYE
1” SOLID 316L STAINLESS STEEL BOW EYE CUT AND INSTALLED
BACK UP BAIT PUMP
PLUMBED TO MAIN OR DECK BAIT TANK
Wireless Windlass Controller – Autoanchor wireless controller allows you full control of the windlass from anywhere in the boat.
Stereo Upgrade – Upgrade from 6” to 8” speakers, additional 10” subwoofer and Wetsounds Sinister amplifier.
Additional Stereo Controller Forward – Controller mounted on the forward bulkhead lets you control the stereo from the bow.
Sea Dek Flooring – Custom based off customer preference.
Large Cleat Upgrade – Upgrade from 8” to 10” cleats around the cap.
Console Covers – White Sunbrella Canvas cover, other colors available.
Full Boat Cover – White Sunbrella Canvas cover, other colors available.
Motor Covers – Individual motor covers that go over the cowling.
Bow Towing Eye – 1” Solid 316L stainless steel bow eye cut and installed through reinforced bow stem.
Bow Seating Module with Backrests – Bow seating with two storage lockers and stainless steel removable backrests.
Fiberglass Bow Table – Table easily stows under console sunpad.
Aft Jump Seats with SS Bracket – Removable jump seats that fit on each side of the livewell.
Outrigger Mounted Shade – Mounts to GEM carbon fiber outriggers.

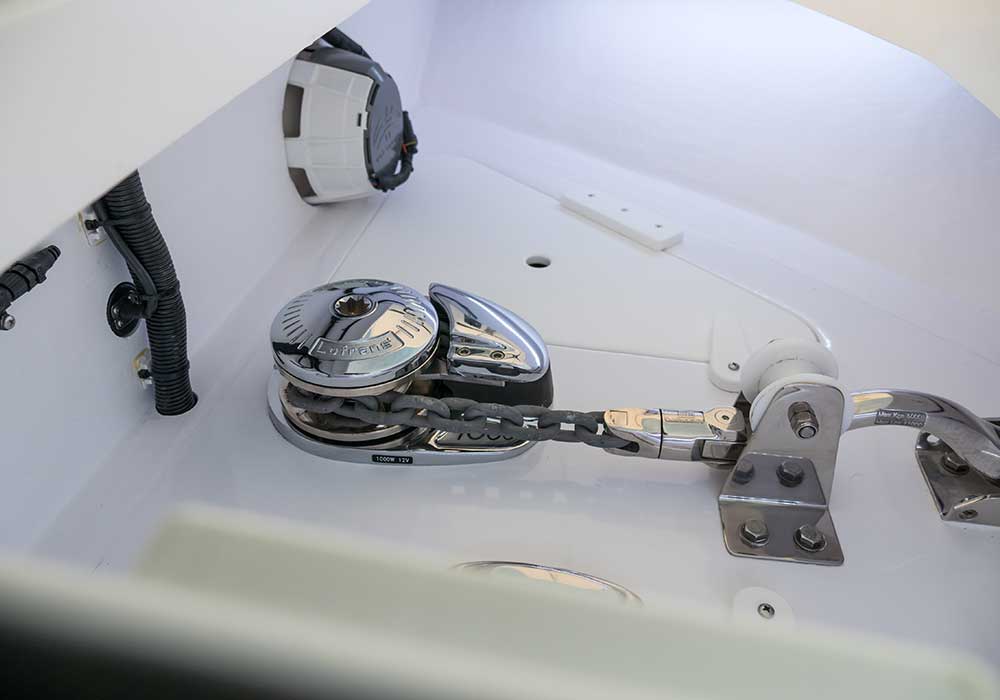

Anchor Windlass -- Lofrans Project 1000 windlass with stainless anchor, turner, swivel, 200 feet of anchor rode and 50 feet of 5/16 chain.
Trailer – Triple Axle oversized aluminum trailer from Sport Trail LLC.
Hull Color – Gelcoat with option for second color under chine.
Boot Stripe – 2” Gelcoat Stripe 1” above waterline.
Bottom Paint – Blue, black, green and red, other color options available upon request.
XL Hard Top – Extended top with 35% more coverage. Oversized Top Frame.
Stainless Steel T-Top Frame – 316 stainless steel legs with mirror polished welds.
Paint Under Hardtop – Gelcoat color on underside t-top fiberglass hardtop.
Powder Coated Metal – Color per customer request.
Console Windscreen – Custom one-piece Ranier strata glass enclosure.
PERFORMANCE OPTIONS

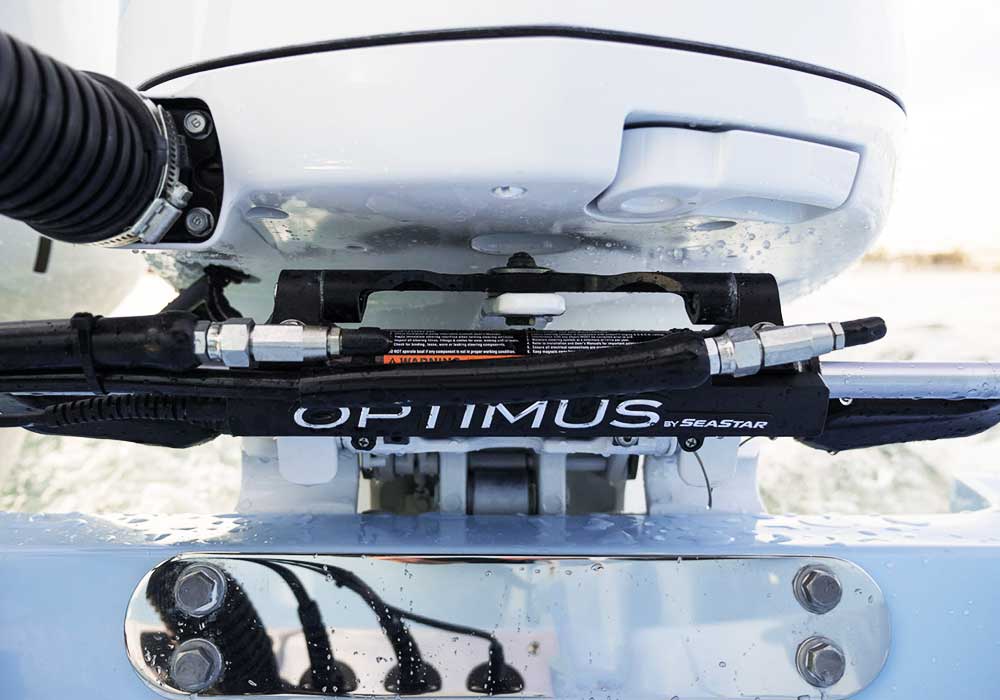

OPTIMUS 360 STEERING UPGRADE
UPGRADE TO FULL OPTIMUS 360 SYSTEM W/JOYSTICK

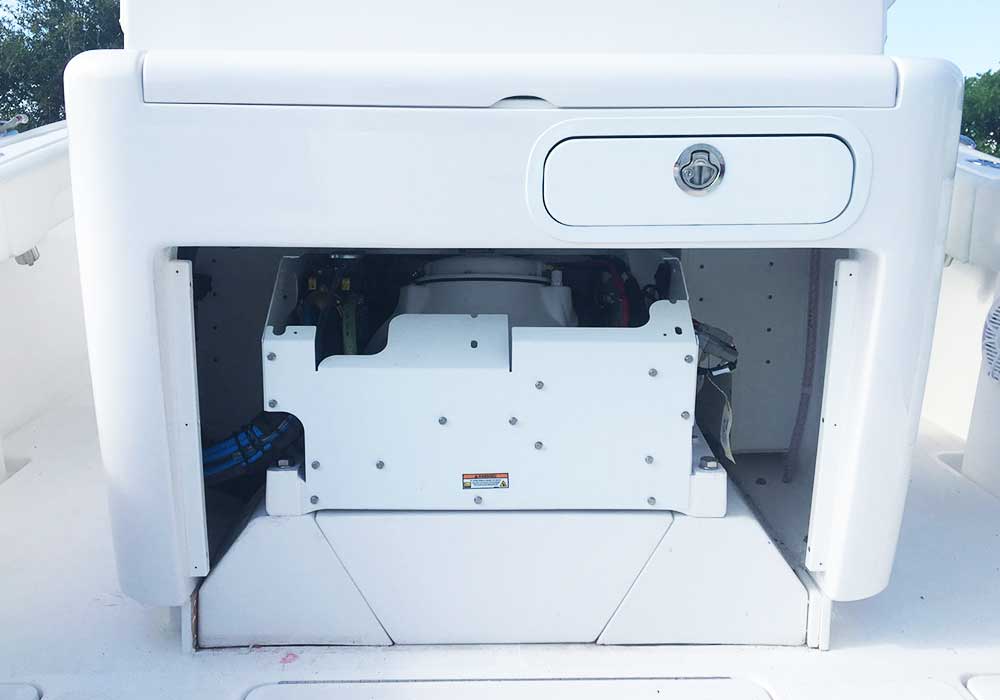

SEAKEEPER SK3 GYRO 12V
MOUNTS IN LEANING POST (NO COOLER)

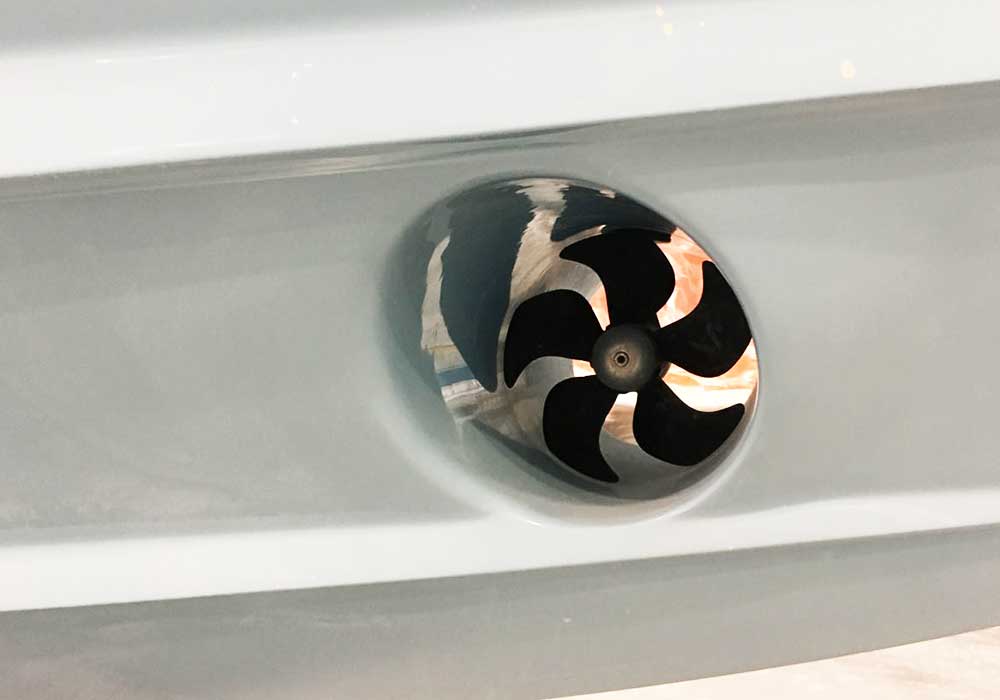

BOW THRUSTER
SIDE POWER THRUSTER WITH MOMENTARY CONTROLLERS
SEASTAR SEASTATION AND SEAWAYS
GET HEADING AND POSITION HOLD WITH 360 JOYSTICK SYSTEM
LIGHTING OPTIONS
LOCKER LIGHTS
HI OUTPUT WHITE LIGHTS INSIDE ALL LOCKERS

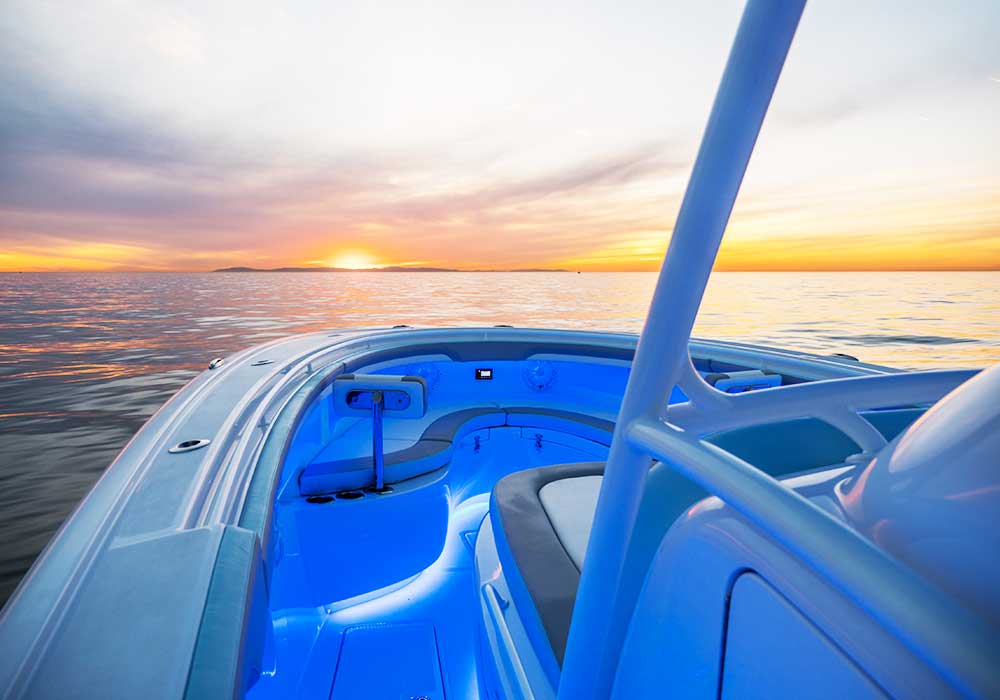

MULTI COLORED ACCENT LIGHTS
(SHOWING BLUE) COLOR CHANGING LIGHTS WITH CONTROLLER
LUMI-LINK LIGHTING CONTROL
CONTROL LIGHTS DIRECTLY FROM MFD DISPLAY
LUMISHORE UNDERWATER LIGHTS
COLOR CHANGING UNDERWATER LIGHTS WITH CONTROLLER

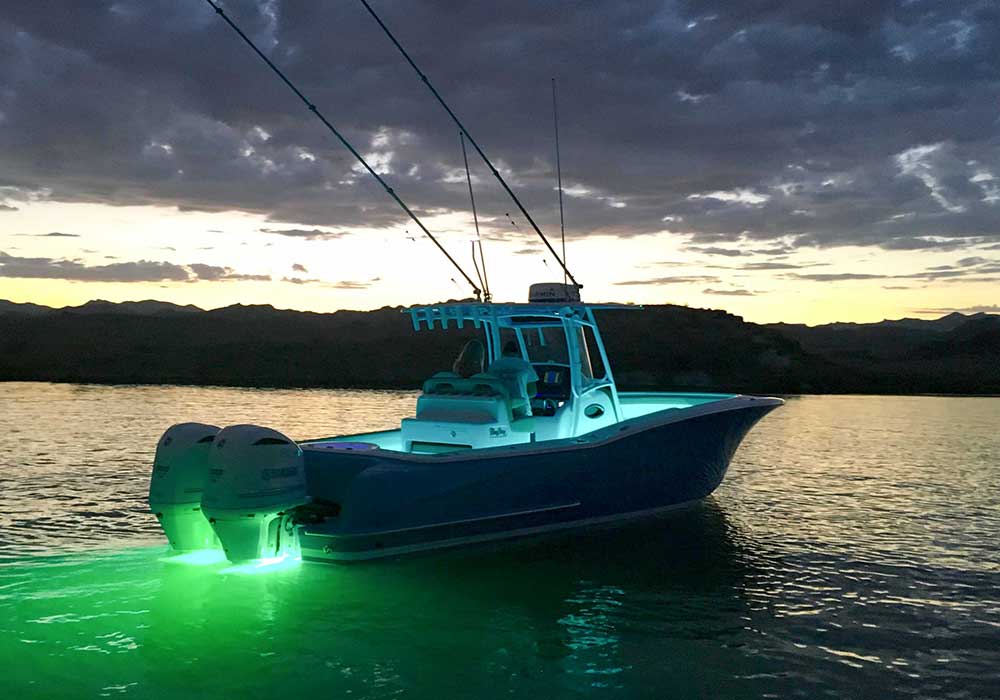

ADDITIONAL UNDERWATER LIGHTS
UP TO 4 ADDITIONAL LIGHTS

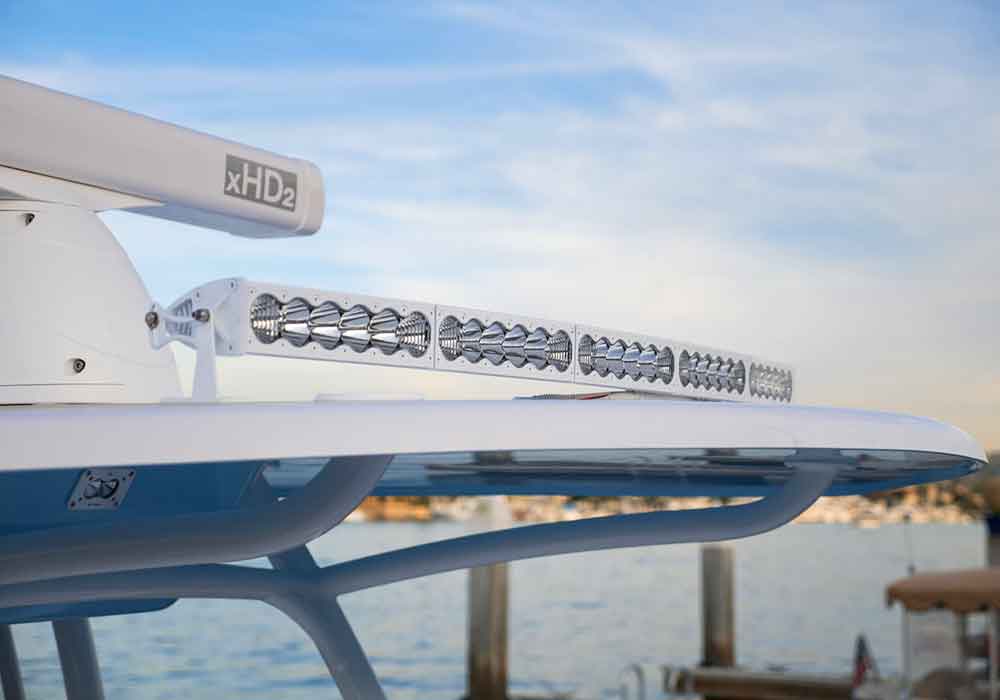

HARDTOP MOUNTED LIGHTBAR
BAJA DESIGNS 50” ONX LIGHTBAR
APPEARANCE OPTIONS

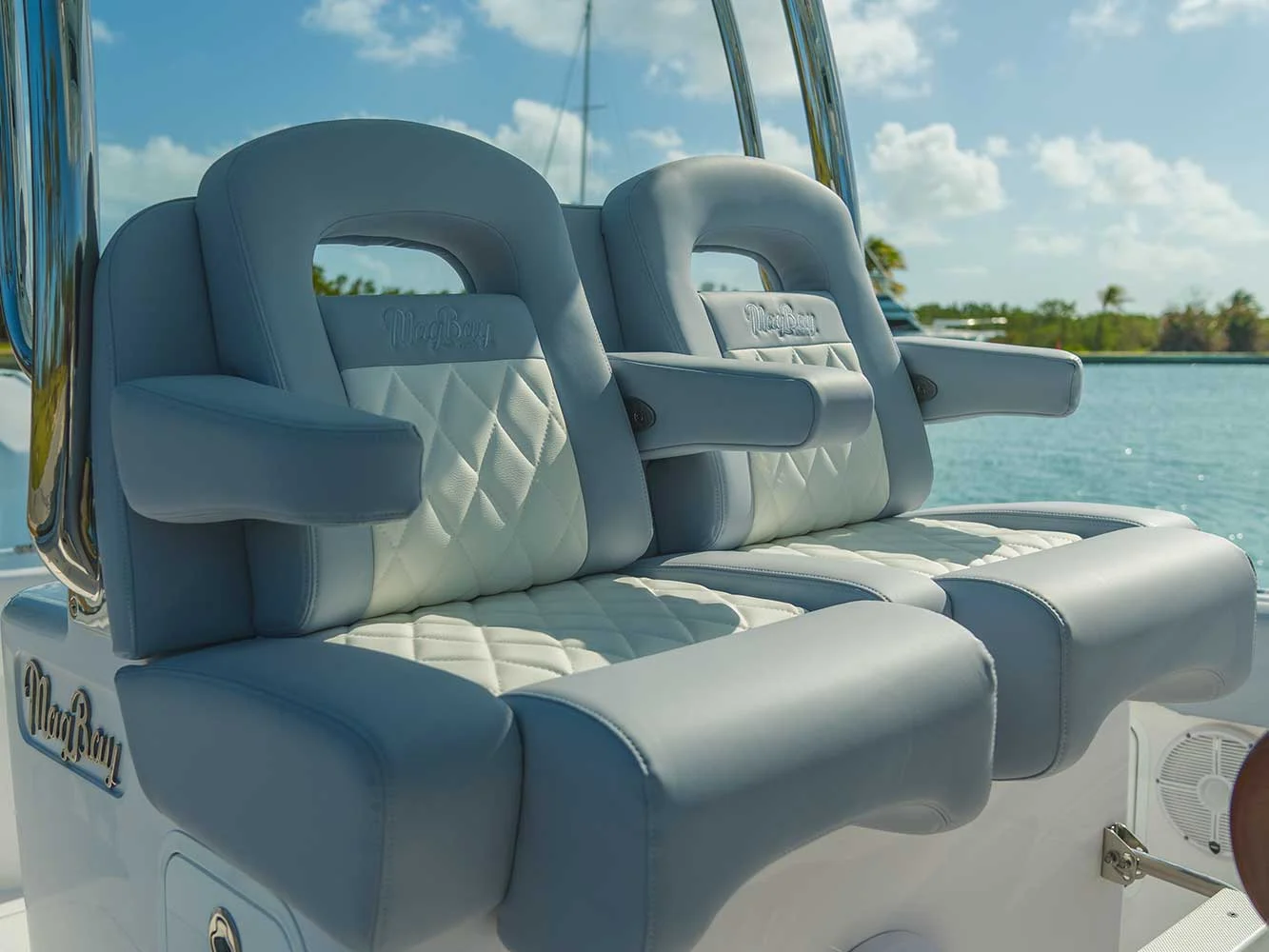

DIAMOND STITCHING ON CUSHIONS
DIAMOND STITCHING ON CONSOLE SEAT CUSHIONS
GLASS DASH ELECTRONICS ENCLOSURE
CUSTOM MADE BLACK ACRYLIC TO FIT ELECTRONICS. SCREENS TO BE INSTALLED AT FACTORY TO ENSURE FIT.
FAUX TEAK DECK CAP
CUSTOM HAND PAINTED BY ARTIST MONIQUE RICHTER
FAUX TEAK HELM POD
CUSTOM HAND PAINTED FAUX TEAK HELM POD WITH ONGARO STEERING WHEEL
CABLE STITCHING ON CUSHIONS
BASEBALL STYLE THREAD AVAILABLE IN ANY COLOR
SILICONE LEATHER MATERIAL
PREMIUM FEEL ULTRA HIGH QUALITY
FISHING OPTIONS
GEMLUX CARBON FIBER OUTRIGGERS
CARBON TELESCOPING OUTRIGGER WITH GEMLUX STAINLESS STEEL BASES
TUNA TUBES 8”
8” TUNA TUBES FIBERGLASSED INTO TRANSOM WITH DEDICATED BAIT PUMP AND MANIFOLD
SIDE LOCKER ROD STORAGE
Hold up to five 6’ rods per side.
TEASER REELS IN HARDTOP
REEL COLORS TEASER REELS MOUNTED IN HARDTOP DIRECTLY ABOVE HELM. COMES WITH MAG BAY STAINLESS STEEL FACE PLATE
GEMLUX Carbon Fiber Outriggers – Carbon telescoping outriggers with GEMLUX stainless steel bases.

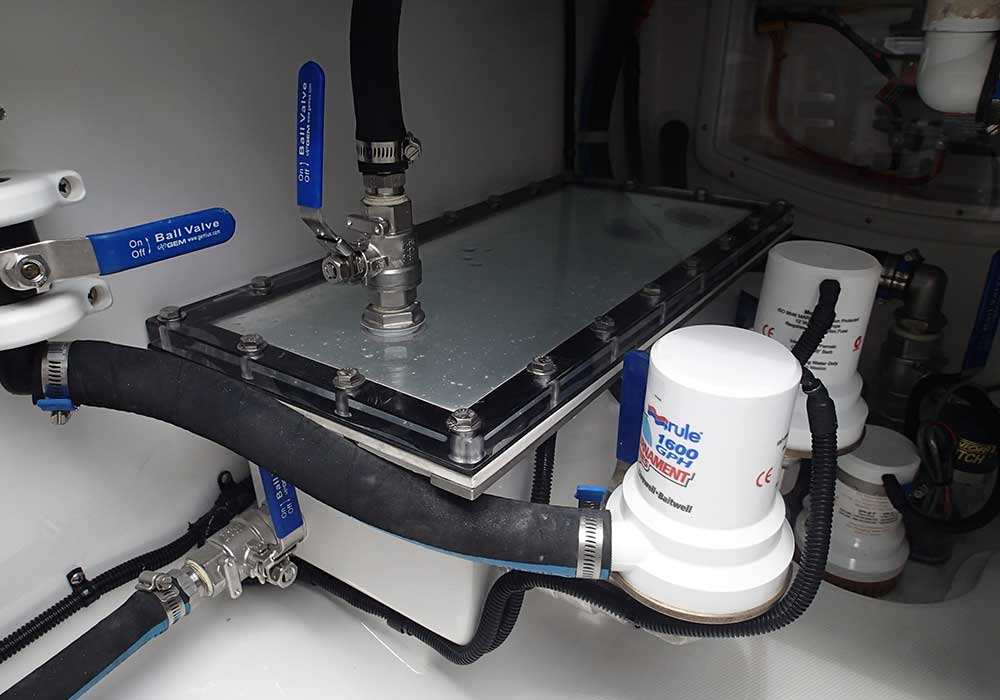

Back Up Bait Pump on Seachest
Side Locker Fishing Rod Storage – Hold up to five 6’ rods per side.
Teaser Reels in Hardtop – Reel Colors teaser reels with Mag Bay Yachts stainless face plate mounted in hardtop directly above helm.
Tuna Tubes – 8” tuna tubes fiberglassed into transom with a dedicated bait pump and manifold.
Additional Rod Holders – GEMLUX Bluewater rod holders in 0, 15 or 30 degree available.
Electric Reel Outlets
MERCURY OPTIONS
Joystick System with Skyhook
Active Trim
Vessel View Mobile
Mercury Theft Deterrent System
Moving Prop Alert System
ELECTRONICS
Airmar B265 Transducer – Factory mounted transducer compatible with all electronics
Screen Mounting
